HZS Stationary Batching Plants — Quick Comparison
| Parameter | HZS60 | HZS90 | HZS120 | HZS180 |
|---|
| Theoretical Capacity | 60 m³/h | 90 m³/h | 120 m³/h | 180 m³/h |
| Mixer Model | JS1000 | JS1500 | JS2000 | JS3000 |
| Mixer Power | 37 kW | 45 kW | 55 kW | 2×37 kW |
| Discharge Capacity | 1.0 m³ | 1.5 m³ | 2.0 m³ | 3.0 m³ |
| Total Power | ~110 kW | ~150 kW | ~180 kW | ~250 kW |
| Total Weight | ~38 t | ~48 t | ~58 t | ~75 t |
| Discharge Height | 3.8 m | 3.8 m | 3.8 m | 4.2 m |
⭐ BEST SELLER

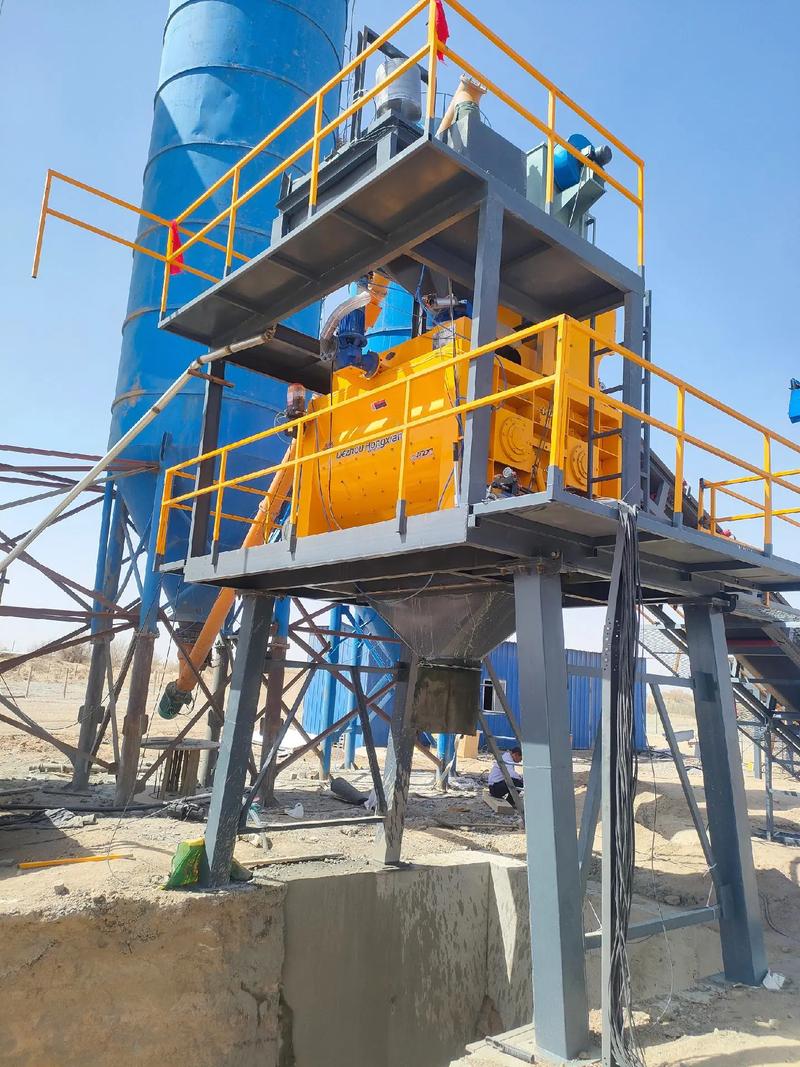

HZS60 Concrete Batching Plant | 60 m³/h Stationary Plant for Small to Medium Projects
60 m³/h — Compact & Cost-Effective
The HZS60 concrete batching plant is a compact stationary plant designed for small to medium construction, rural roads, and small commercial concrete stations. Equipped with JS1000 twin-shaft forced mixer (37 kW), PLC control, 3-bin aggregate system. Also known as 60m³ concrete batching plant or small concrete batch plant. ISO & CE certified, easy to install and relocate.
1. Basic Information
| Model | HZS60 |
| Type | Stationary Concrete Batching Plant |
| Theoretical Productivity | 60 m³/h |
| Application | Road construction, building projects, small commercial concrete supply |
| Standards | ISO 9001, CE compliant |
2. Mixing System
| Mixer Model | JS1000 — Forced Twin-Shaft |
| Dry Capacity | 1.0 m³ |
| Compacted Concrete Output per Batch | 0.67 m³ |
| Mixing Motor Power | 37 kW |
| Mixing Cycle Time | 60 seconds |
| Mixing Shaft Speed | 24.5 rpm |
| Max Aggregate Size | 40 mm (pebble) / 60 mm (crushed stone) |
| Blade Material | High-chromium cast iron (wear-resistant) |
| Lining Plate Material | High-manganese steel (replaceable) |
3. Aggregate Batching & Conveying
| Number of Bins | 3 bins |
| Single Bin Capacity | 8 m³ |
| Weighing Hopper Capacity | 1.2 m³ |
| Weighing Method | Load cell electronic weighing |
| Weighing Accuracy | ±2% |
| Belt Width | 800 mm |
| Belt Speed | 1.5 m/s |
| Conveyor Inclination | ~18° |
| Gate Opening | Pneumatic (cylinder-driven) |
4. Cement / Powder System
| Cement Silos | 1 standard (optional 2) — 50t / 80t / 100t |
| Cement Weighing Capacity | 0.5 m³ |
| Weighing Accuracy | ±1% |
| Conveying Method | Screw conveyor, diameter 273 mm |
| Dedusting | Cartridge filter + pulse jet cleaning |
| Safety Devices | Pressure relief valve, high/low level indicators |
5. Water & Additive System
| Water Weighing Capacity | 0.4 m³, accuracy ±1% |
| Water Supply | Centrifugal pump, DN50 pipe |
| Additive Tanks | 1 × 1.0 m³ (optional 2), accuracy ±1% |
6. Pneumatic System
| Compressor Power | 5.5 kW |
| Working Pressure | 0.6 — 0.8 MPa |
| Air Treatment | FRL unit (filter + regulator + lubricator) |
7. Electrical & Control
| Control Mode | PLC + 10" Touch Screen (Manual / Semi / Full Auto) |
| PLC Brand (configurable) | Siemens / Schneider / Omron |
| Recipe Storage | 100+ mix recipes |
| Data Logging | Daily production report, material consumption tracking |
| Remote Monitoring | Optional (GSM / IoT module) |
| Total Connected Power | ~110 kW |
| Operating Voltage | 380V / 440V / Custom (3-phase, 50/60 Hz) |
8. Structural & Installation
| Overall Dimension (L×W×H) | 32,000 × 12,000 × 18,000 mm |
| Total Weight | ~38 tons |
| Discharge Height | 3.8 m |
| Structure Type | Modular steel, bolted connection |
| Installation Time | 7-10 days |
| Foundation | Reinforced concrete per engineering drawing |
| Paint System | Anti-rust primer + polyurethane top coat |
9. Optional Add-ons
| Additional Silos | Fly ash, micro-silica, etc. |
| Winter Package | Insulation, heat trace, steam injection |
| Recycling System | Waste water / aggregate recycling |
| Ticket Printer | Delivery slip printer |
| CCTV | Camera monitoring system |
⭐ BEST SELLER
HZS90 Concrete Batching Plant | 90 m³/h Modular Plant for Commercial Concrete Production
90 m³/h — Balanced Capacity for Mid-Size Projects
The HZS90 concrete batching plant features a JS1500 twin-shaft mixer (45 kW), 4-bin aggregate system, and precise electronic weighing. Ideal for commercial concrete production and medium to large construction projects. Modular design enables fast installation. Also known as 90m³ concrete batch plant or mid-size concrete mixing plant. Widely used for highway and urban construction projects.
1. Basic Information
| Model | HZS90 |
| Productivity | 90 m³/h |
2. Mixing System
| Mixer | JS1500 Twin-Shaft |
| Dry Capacity | 1.5 m³ |
| Output per Batch | 1.0 m³ |
| Motor Power | 45 kW |
| Cycle Time | 60 s |
| Shaft Speed | 25.5 rpm |
| Max Aggregate | 40/60 mm |
3. Aggregate Batching
| Bins | 4 × 12 m³ |
| Weighing Hopper | 1.8 m³ |
| Accuracy | ±2% |
| Belt Width | 1000 mm |
4. Cement System
| Silos | 1 (opt.2) 50-150t |
| Weighing | 0.8 m³ ±1% |
| Screw | 325 mm dia. |
5. Water
| Weighing | 0.5 m³ ±1% |
| Additive | 1 × 1.0 m³ |
6. Pneumatic
| Compressor | 7.5 kW, 0.6-0.8 MPa |
7. Electrical
| Control | PLC + Touch Screen |
| Total Power | ~150 kW |
| Voltage | 380V/440V/50/60Hz |
8. Structural
| Dimension | 35,000×14,000×20,000 mm |
| Weight | ~48 t |
| Discharge Height | 3.8 m |
| Installation | 10-14 days |
🔥 TOP PICK

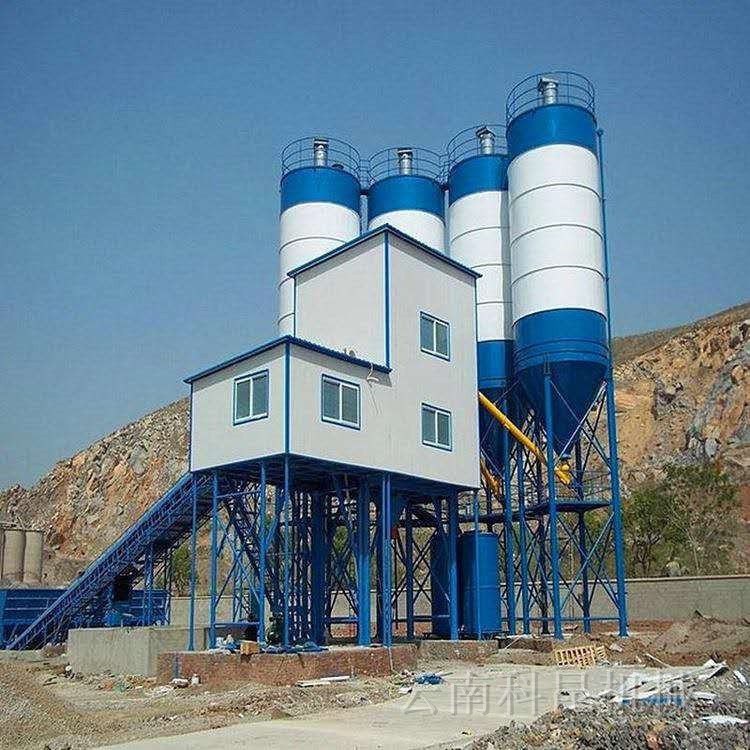

HZS120 Concrete Batching Plant | 120 m³/h Automated Plant for Large Construction Projects
120 m³/h — Best-Seller for Commercial Production
The HZS120 concrete batching plant is a high-capacity stationary plant with JS2000 twin-shaft mixer (55 kW), PLC + PC dual automation, and 4×15 m³ aggregate bins. Designed for highways, bridges, and large building projects. Fully automated batching with 100+ recipe storage, data logging, and optional IoT remote monitoring. Also known as 120m³ concrete batch plant.
1. Basic Information
| Model | HZS120 |
| Productivity | 120 m³/h |
2. Mixing System
| Mixer | JS2000 |
| Dry Capacity | 2.0 m³ |
| Output/Batch | 1.33 m³ |
| Motor | 55 kW |
| Cycle | 60 s |
3. Aggregate
| Bins | 4×15 m³ |
| Weighing | 2.4 m³ |
| Belt | 1000 mm |
4. Cement
| Silos | 1-2, 50-200t |
| Weighing | 1.0 m³ |
5. Water
| Water/Additive | 0.6 m³ + 2×1.0 m³ tanks |
7. Electrical
| Control | Fully Auto (PLC+PC) |
| Total Power | ~180 kW |
8. Structural
| Dimension | 38,000×15,000×22,000 mm |
| Weight | ~58 t |
| Discharge | 3.8 m |
| Installation | 12-16 days |
⚡ HEAVY DUTY

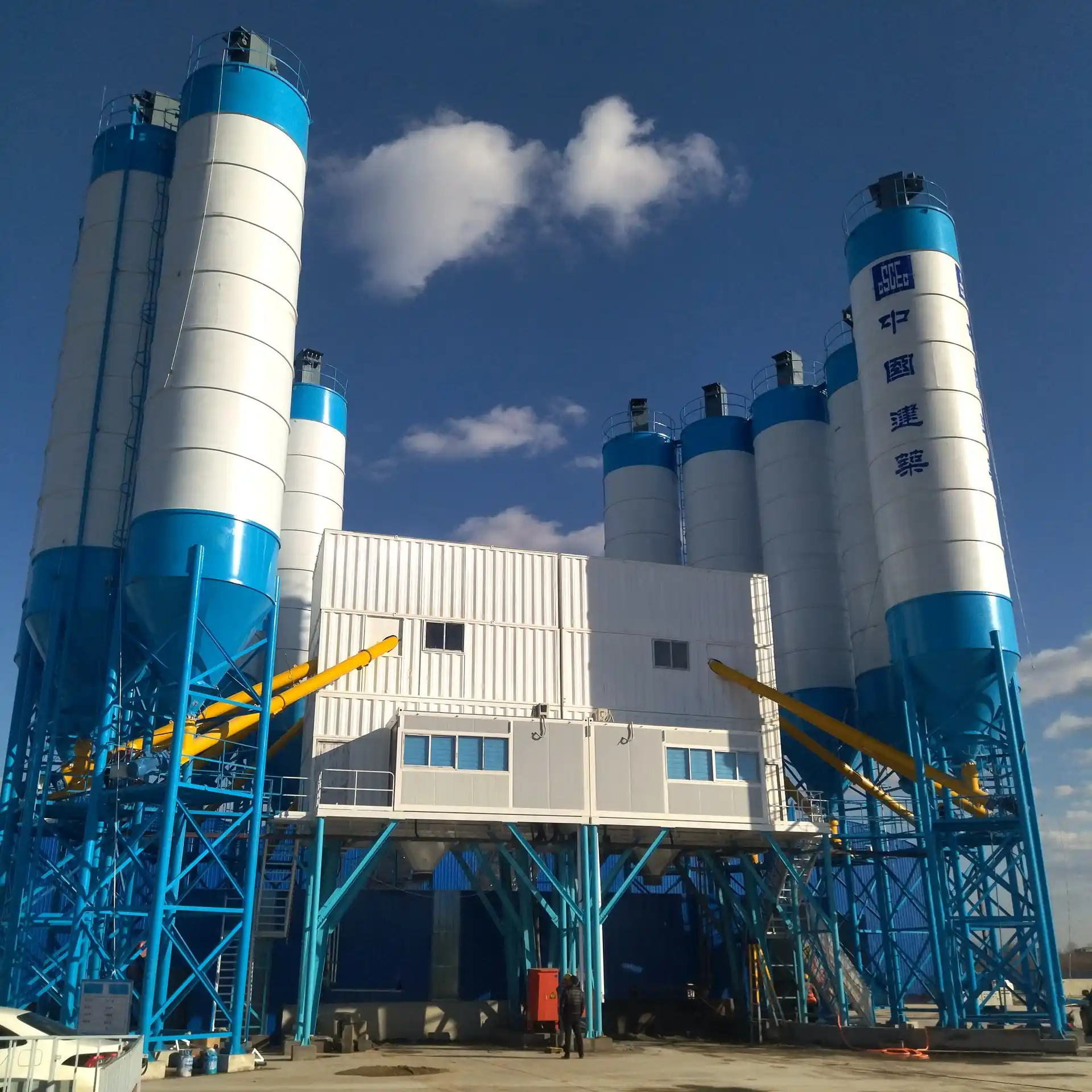

HZS180 Concrete Batching Plant | 180 m³/h Industrial Plant for Large Infrastructure Projects
180 m³/h — Large Infrastructure Projects
The HZS180 concrete batching plant is our largest stationary plant with JS3000 twin-shaft mixer (2×37 kW), 4×20 m³ aggregate bins, and full PLC + PC automation with remote monitoring. Designed for dams, ports, airports, and large-scale infrastructure projects. Also known as 180m³ concrete batching plant or large concrete batch plant. Maximum productivity for demanding heavy-duty applications.
1. Basic Information
| Model | HZS180 |
| Productivity | 180 m³/h |
2. Mixing System
| Mixer | JS3000 |
| Dry Capacity | 3.0 m³ |
| Output/Batch | 2.0 m³ |
| Motor | 2×37 kW (74 kW total) |
3. Aggregate
| Bins | 4×20 m³ |
| Weighing | 3.6 m³ |
| Belt | 1200 mm |
4. Cement
| Silos | 2 × 100-200t |
| Weighing | 1.5 m³ |
| Screw | 2×325 mm |
5. Water
| Water/Additive | 0.8 m³ + 2×1.5 m³ tanks |
7. Electrical
| Control | Fully Auto (PLC+PC+Remote) |
| Total Power | ~250 kW |
| Voltage | 380/440/660V custom |
8. Structural
| Dimension | 42,000×16,000×25,000 mm |
| Weight | ~75 t |
| Discharge | 4.2 m |
| Installation | 15-20 days |
JS Series Twin-Shaft Concrete Mixers
| Parameter | JS500 | JS750 | JS1000 | JS1500 | JS2000 |
|---|
| Discharge Capacity | 0.5 m³ | 0.75 m³ | 1.0 m³ | 1.5 m³ | 2.0 m³ |
| Productivity | 25-30 m³/h | 30-35 m³/h | 40-50 m³/h | 55-65 m³/h | 70-85 m³/h |
| Motor Power | 18.5 kW | 30 kW | 37 kW | 45 kW | 55 kW |
| Cycle Time | 72 s | 72 s | 60 s | 60 s | 60 s |
| Max Aggregate (peb/stone) | 40/60 mm | 40/60 mm | 40/60 mm | 40/60 mm | 40/60 mm |
| Weight | ~3.2 t | ~4.5 t | ~5.6 t | ~6.8 t | ~8.2 t |

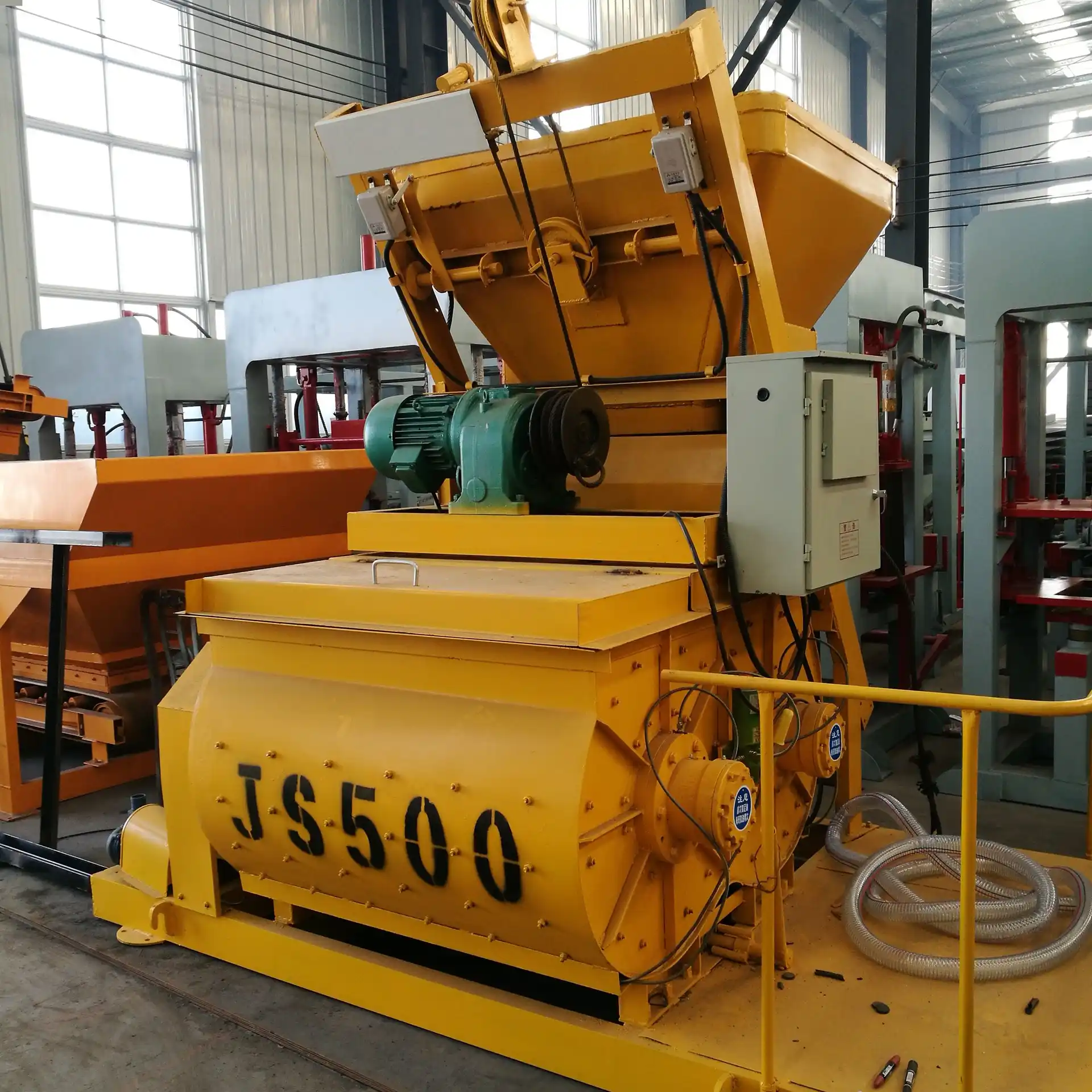

JS500 Concrete Mixer | 0.5 m³ Forced Twin-Shaft for Small Construction
0.5 m³ — Compact & Reliable
The JS500 concrete mixer is a forced twin-shaft mixer with 0.5 m³ discharge capacity, 18.5 kW motor, and 25-30 m³/h productivity. Ideal for small construction projects, precast plants, and as a supporting mixer for HZS series batching plants. Also known as 500L concrete mixer or small concrete mixer.
| Model | JS500 |
| Discharge Capacity | 0.5 m³ |
| Productivity | 25-30 m³/h |
| Motor Power | 18.5 kW |
| Mixing Cycle Time | ~72 seconds |
| Max Aggregate Size (pebble/stone) | 40/60 mm |
| Discharge Height | 1.6 m (customizable) |
| Overall Dimension | 3500×2100×1900 mm |
| Weight | ~3.2 tons |

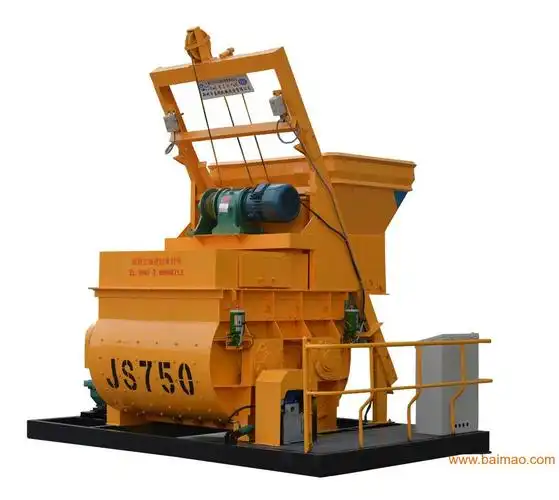

InquireJS750 Concrete Mixer | 0.75 m³ Twin-Shaft for Mid-Size Projects
0.75 m³ — 30 kW Motor
| Discharge | 0.75 m³ |
| Productivity | 30-35 m³/h |
| Motor | 30 kW |
| Cycle | 72 s |
| Aggregate | 40/60 mm |
| Discharge Height | 2.0 m |
| Weight | ~4.5 t |

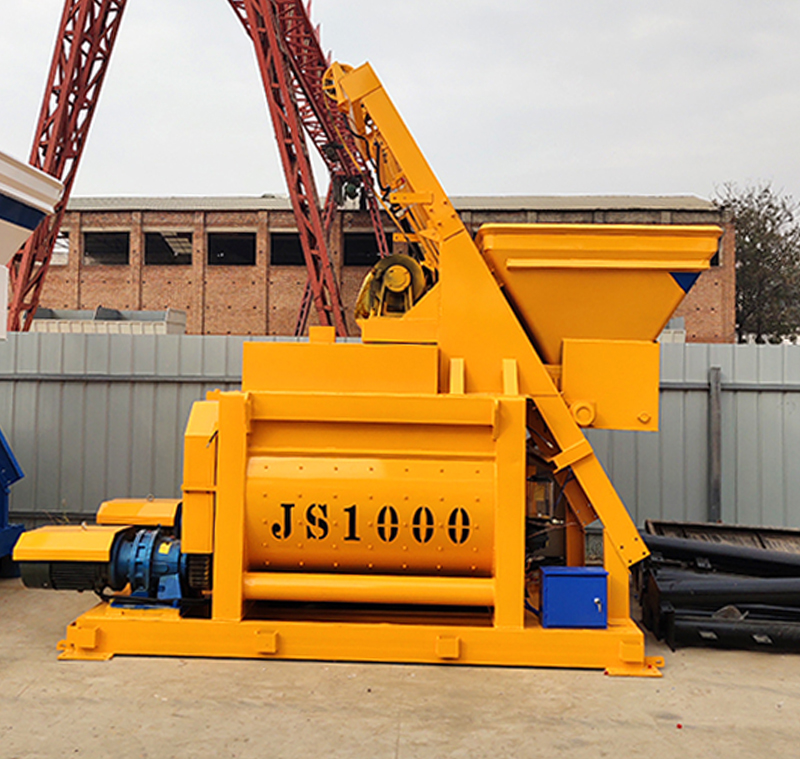

InquireJS1000 Concrete Mixer | 1.0 m³ Forced Mixer for HZS60 Batching Plants
1.0 m³ — for HZS60/75 Batching Plants
| Discharge | 1.0 m³ |
| Productivity | 40-50 m³/h |
| Motor | 37 kW |
| Cycle | 60 s |
| Discharge Height | 2.4 m |
| Weight | ~5.6 t |

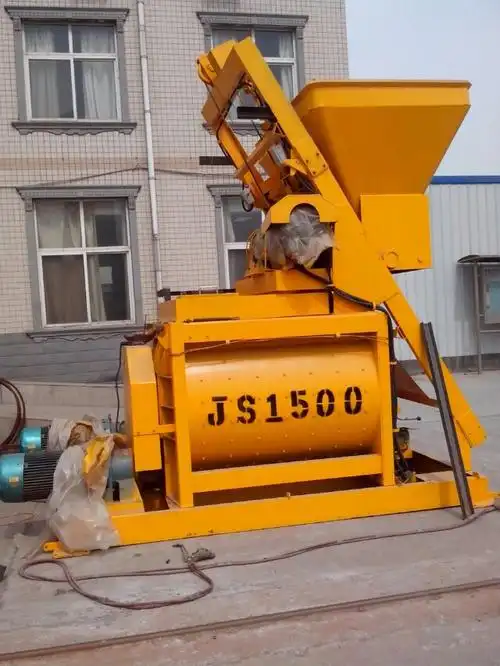

InquireJS1500 Concrete Mixer | 1.5 m³ Twin-Shaft for HZS90 Batching Plants
1.5 m³ — for HZS90 Batching Plants
| Discharge | 1.5 m³ |
| Productivity | 55-65 m³/h |
| Motor | 45 kW |
| Cycle | 60 s |
| Discharge Height | 2.8 m |
| Weight | ~6.8 t |

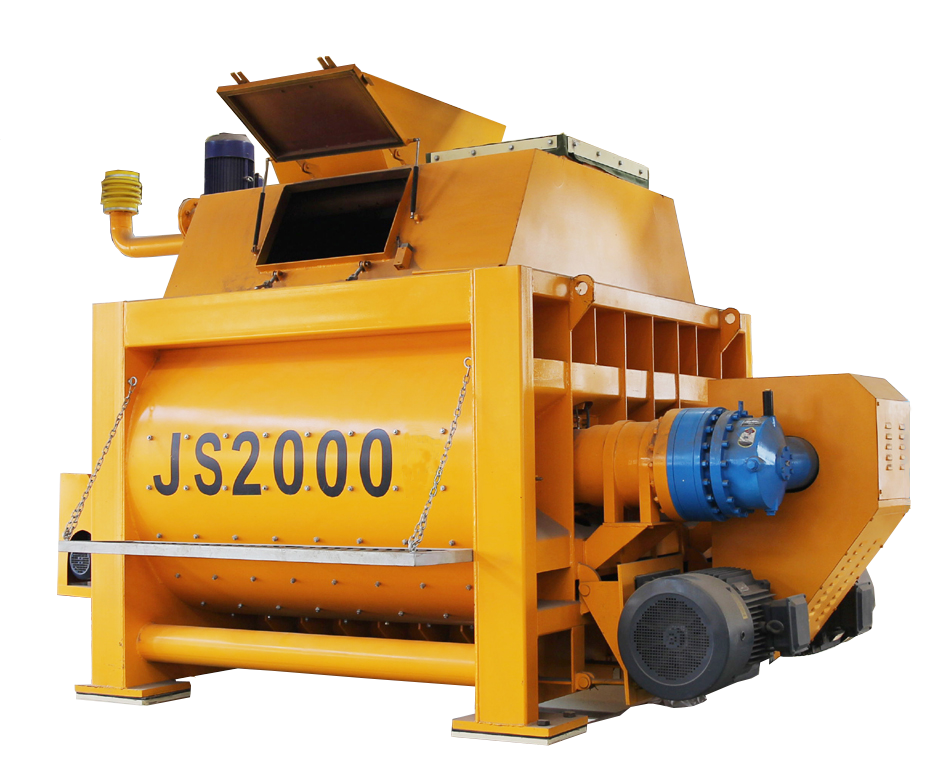

InquireJS2000 Concrete Mixer | 2.0 m³ Twin-Shaft for HZS120 Batching Plants
2.0 m³ — for HZS120/150 Batching Plants
| Discharge | 2.0 m³ |
| Productivity | 70-85 m³/h |
| Motor | 55 kW |
| Cycle | 60 s |
| Discharge Height | 3.0 m |
| Weight | ~8.2 t |
